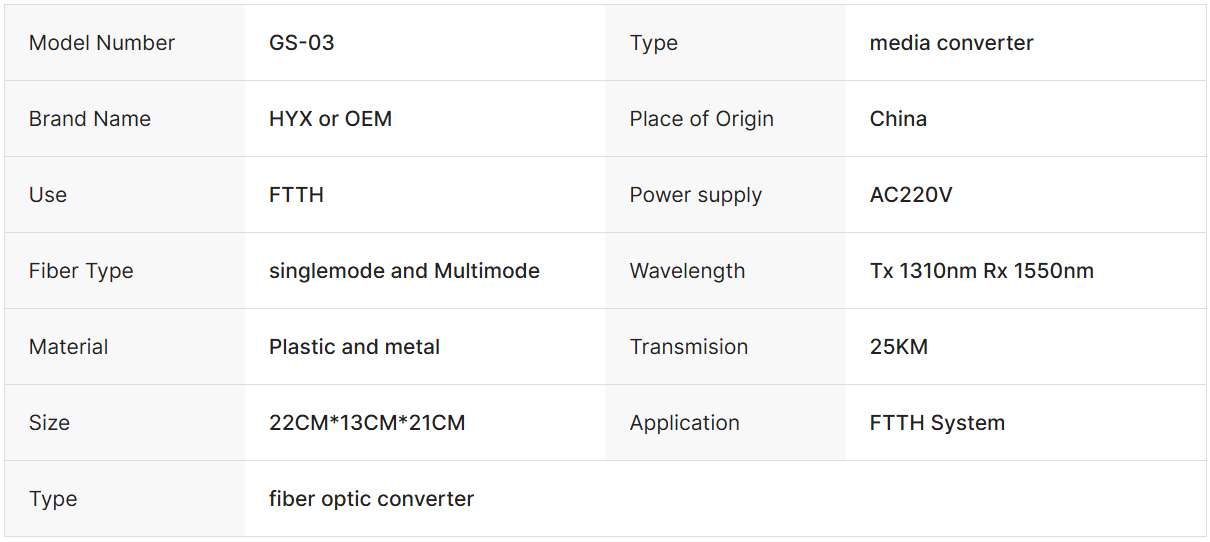

Key attributes

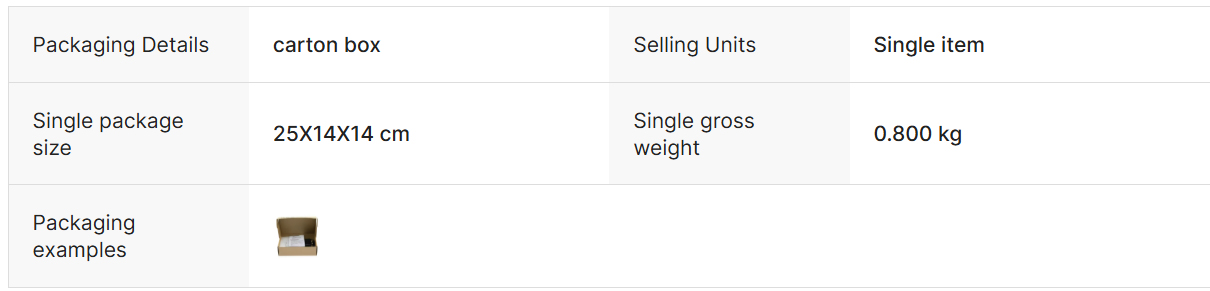

Packaging and delivery
Product Description
Neutral Media Converter converts the copper UTP media to the multimode or single mode fiber with duplex SC, ST, and LC interface.
The equipped auto-negotiation function enables the media converters to operate at 10 or 100Mbps copper Ethernet or Fast Ethernet and the 100Mbps fiber. This conversion complies with IEEE802.3 and IEEE802.3u standards with two different network connection media, 10/100Base -TX and 100Base-FX. The data transmission is realized by switching and store-and-forward technologies.
Link fault pass through capability is built inside the media converters. LEDs on the front panel therefore display the media converter status and the far end fault conditions for network diagnosis purpose.
This series of media converter can be used as a stand-alone device or be directly mounted into 2U 19”rack mount chassis.
Fourteen/Sixteen media converter slots can be accommodated in this chassis.

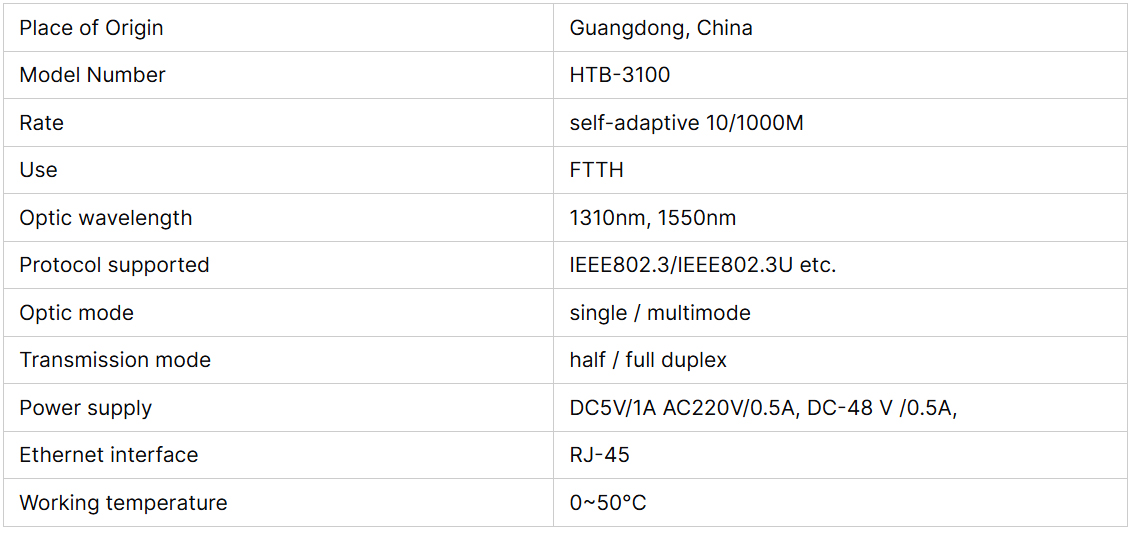

Specification
