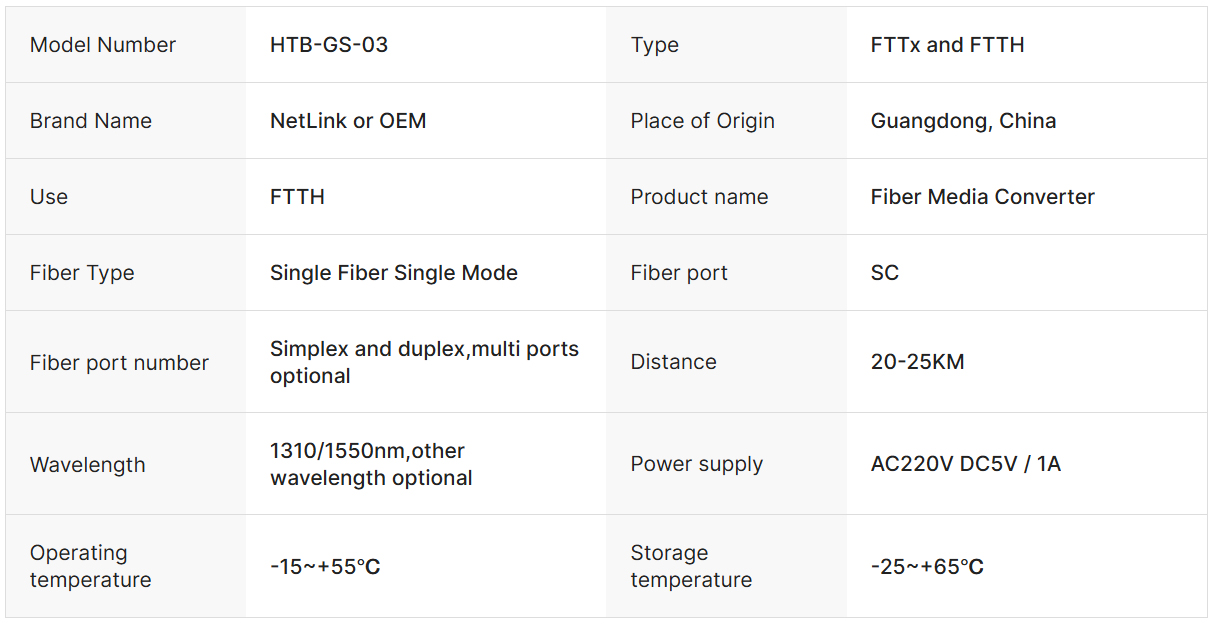

Key attributes

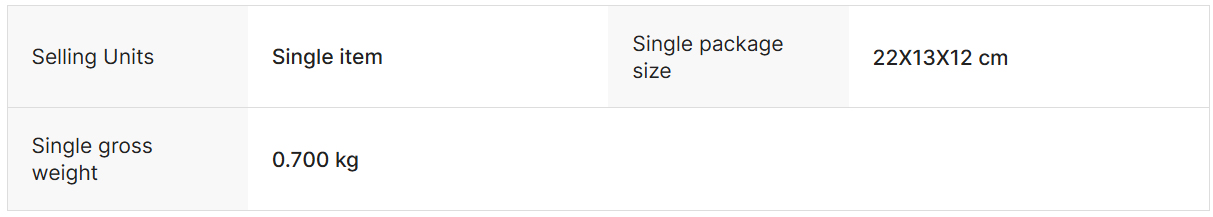

Packaging and delivery
Product descriptions from the supplier
Fiber Optic Ethernet Media Converter netlink 10/100M HTB-1100s
The non-managed media converters, which give you economic solutions for media conversion between fiber and copper Ethernet. It provides you SC,FC or ST connectors for your fiber optic cables and RJ45 for twisted pair UTP cable connection.The maximum
extension is up to 120km over fiber.
.jpg)
Product DescriptionHTB-3100 10/100M
10/100 auto-adaptive Ethernet fiber optical transceiver, using the latest design, high-performance chips, high-quality optical transceiver module, stable function and excellent quality, adaptability, and common network equipment can normally connection.
HTB-GM-03 10/10/1000M
HTB-GM-03, 2 SC fiber port + 1 Lan port with single mode module.(Accept OEM)
10/100/1000M Media converter auto-adaptive Ethernet fiber optical transceiver, using the latest design, high-performance chips,
high-quality optical transceiver module, stable function and excellent quality
1 FIber + 4 Lan port media converter
1 HTB-3100 with SC fiber port single mode + 4 lan port media converter transfer , it makes the fiber transfer and connector more convenient and help you solve the FTTH problems
with lower cost and good performance
we also have 2 fiber +4 lan / 4 fiber +2 lan / 2 fiber + 6 lan/6 fiber + 8 lan etc

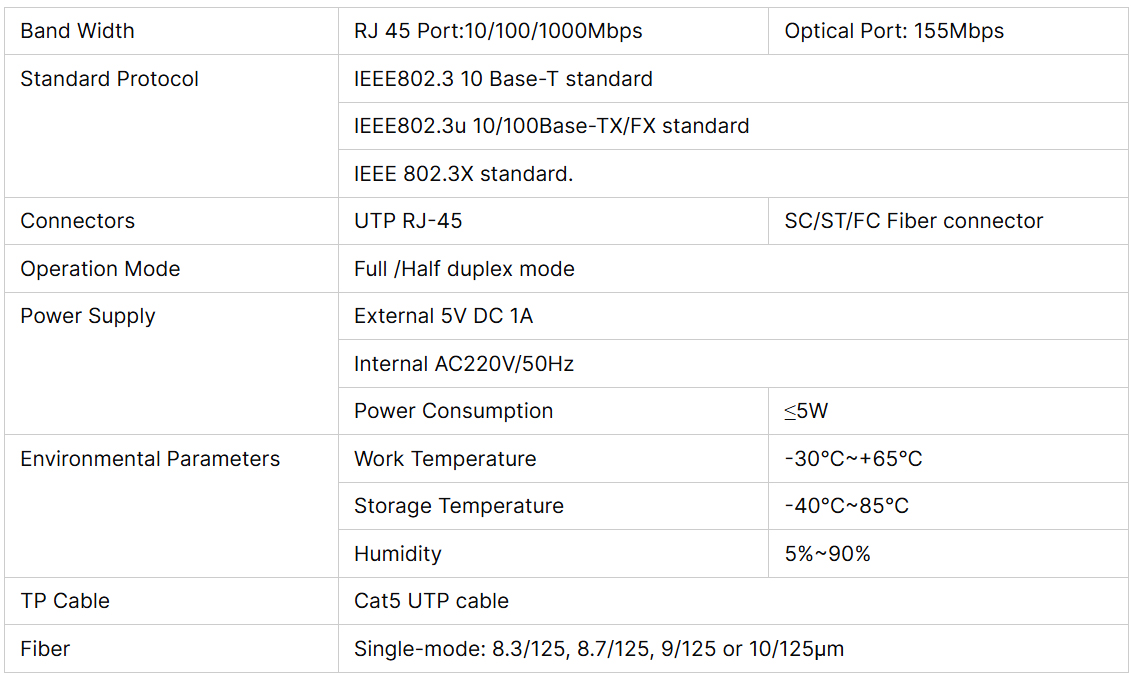

Products information
* In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z,1000base-SX/LX, IEEE802.1a,
IEEE802.1PQ0S, IEEE802.1d Spanning Tree.
* Hot Plug-gable & Wall-Mountable.
* Stable performance more than 50thousand hours with fault-free.
* Unique IC solution applied.
* Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades.
* Auto MDI/MDI-X.
* Auto Negotiation.
* Support flow control.
* Concentrated into EF16-D220(16slot for media converter cards) or EF14-D220(14slot for media converter standalone type) 2U
rack-mount chassis.
* Stable performance more than 50 thousands hours with fault-free.
* In conformity with safety code of FCC, CE and RoHS.
Application:
1,Optical fiber communications systems;
2,Optical fiber access network;
3,Optical fiber CATV.
4,Optical fiber test equipments;
5,Optical fiber data communications;
6,LAN
