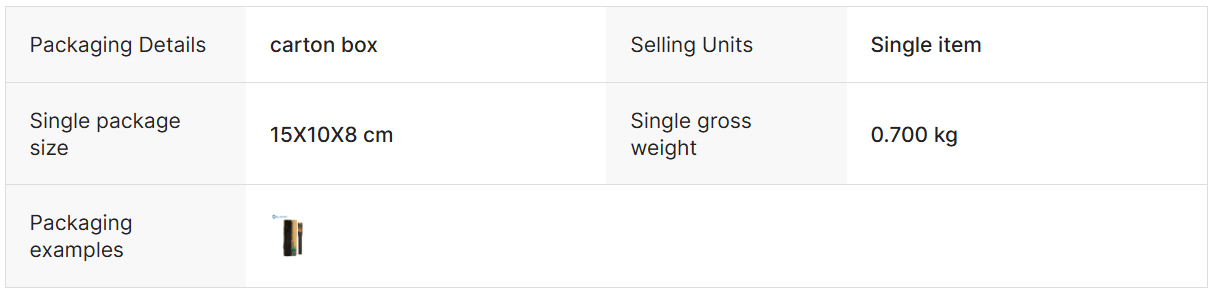

Packaging and delivery
Product Description
BT-PON 10KM Optical Fiber Detection
Pen Fiber visual fault locator Red Laser Pointer
1. Summary
650nm visual fault locator has the function of fiber identification and faults locator of SM or MM fiber, it is a helpful assistant to dead zone of OTDR, it is also a basic maintenance tool for fiber network, LAN, ATM fiber system and telecom network system.
2. Functions and feature
--Support CW and 2Hz modulation work mode
--Solid: use special laser end design to avoid damage when dropping on the floor.
--Long working hours: use effective laser drive circuit to ensure 1mW/650nm locator can work more than 60 hours continuously.
--Stable power output: use special laser driver circuit, which can ensure stable power output in the low battery.
--2.5mm universal adapter: use 2.5mm universal adapter, can match SC/LC adapters.
3. Specifications
1.Fiber fracture and bending fault location;
2.OTDR shadow of the failed inspection;
3.End to end fiber identification;
4.Maintenance in telecom, CATV;
5.Test Lab of optical fibers;
6.Fiber routing and continuity checking in optical networks.

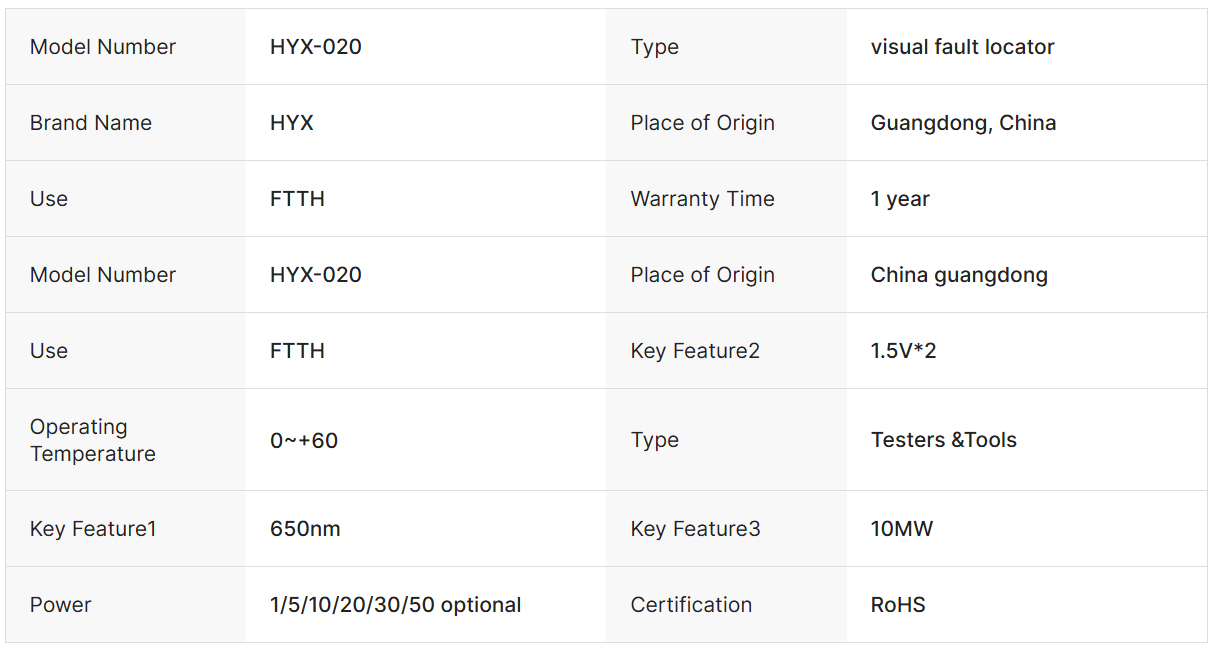

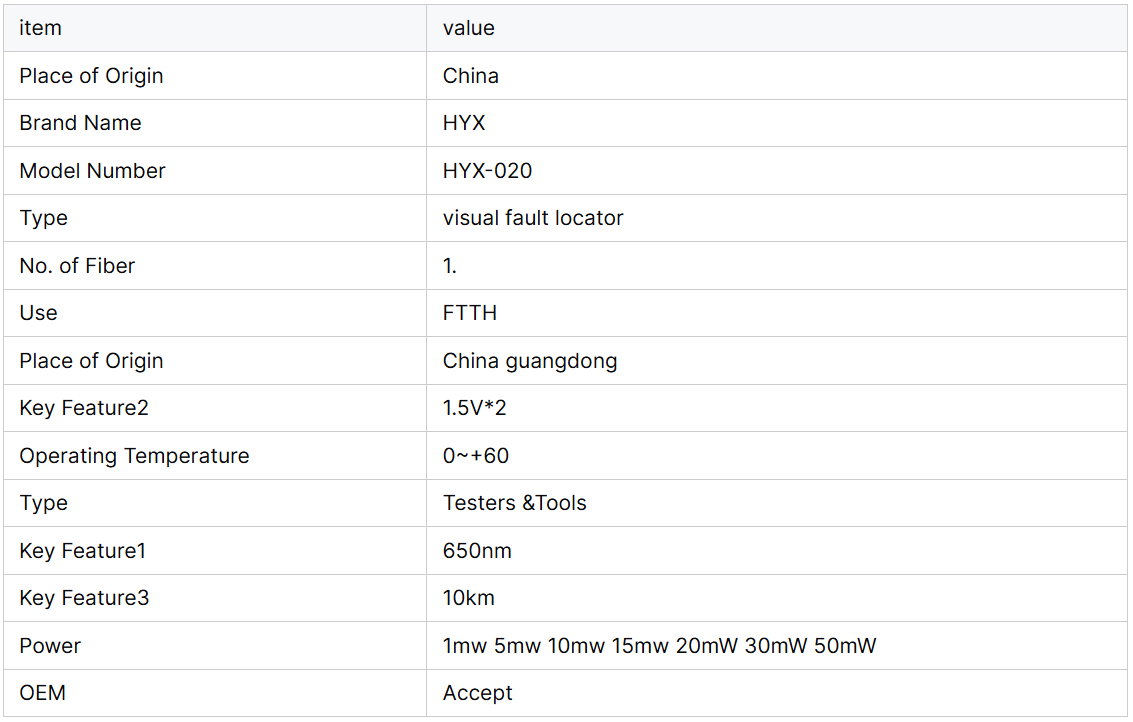

Specification
